S-SERIES VIBRATING FEEDERS

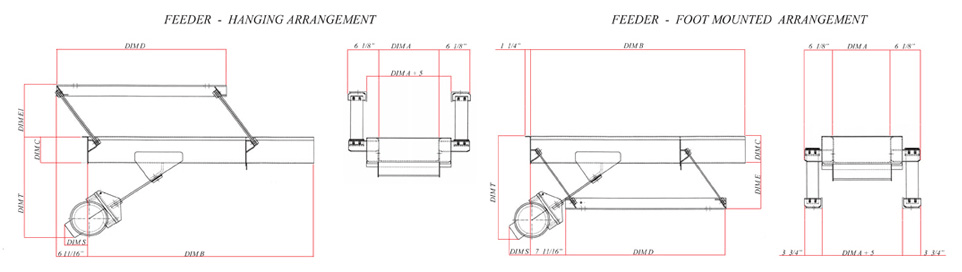

Sizing Chart

Vibrating Feeders | UN-COALER® Activator / Feeders | Technical Information | Parts & Service

Model	DIM A	DIM B	DIM C	DIM D	DIM E	DIM E1	Pan Thickness	HP	Unit Weight	DIM S	DIM T	Capacity [ft3 / min]
6-3	6	36	4	24	10.375	11.6875	0.1196	0.16	135	9	20.375	4
6-4	6	48	4	36	10.375	11.6875	0.1196	0.16	149	2.75	20.375	4
6-5	6	60	4	46	10.375	11.6875	0.1196	0.16	165	-3.25	20.375	4
12-3	12	36	6	24	10.375	11.6875	0.1196	0.36	204	10.875	23.125	8
12-4	12	48	6	36	10.375	11.6875	0.1196	0.36	222	4.875	23.125	8
12-5	12	60	6	46	10.375	11.6875	0.1196	0.36	242	-1.125	23.125	8
12-6	12	72	6	56	10.375	11.6875	0.1196	0.36	262	-7.125	23.125	8
18-4	18	48	8	36	10.375	11.6875	0.1196	0.36	246	5.875	25.125	12
18-5	18	60	8	46	10.375	11.6875	0.1196	0.36	270	-0.125	25.125	12
18-6	18	72	8	56	10.375	11.6875	0.1196	0.36	294	-6.125	25.125	12
18-7	18	84	8	66	10.375	11.6875	0.1196	0.36	318	-12.125	25.125	12
24-4	24	48	8	36	10.375	11.6875	0.1196	0.69	312	6.0625	25.4375	16
24-5	24	60	8	46	10.375	11.6875	0.1196	0.69	338	0.0625	25.4375	16
24-6	24	72	8	56	10.375	11.6875	0.1196	0.69	365	-5.9375	25.4375	16
24-7	24	84	8	66	10.375	11.6875	0.1196	0.69	391	-11.9375	25.4375	16
24-8	24	96	8	76	10.375	11.6875	0.1196	0.69	418	-17.9375	25.4375	16
30-4	30	48	10	36	10.375	11.1875	0.1875	0.75	418	7.0625	27.4375	20
30-5	30	60	10	46	10.375	11.1875	0.1875	0.75	462	1.0625	27.4375	20
30-6	30	72	10	56	10.375	11.1875	0.1875	0.75	505	-4.9375	27.4375	20
30-7	30	84	10	66	10.375	11.1875	0.1875	0.75	549	-10.9375	27.4375	20
30-8	30	96	10	76	10.375	11.1875	0.1875	0.75	592	-16.9375	27.4375	20
36-5	36	60	12	46	10.375	11.1875	0.1875	0.75	517	2.0625	29.4375	24
36-6	36	72	12	56	10.375	11.1875	0.1875	0.75	567	-3.9375	29.4375	24
36-7	36	84	12	66	10.375	11.1875	0.1875	0.75	617	-9.9375	29.4375	24
36-8	36	96	12	76	10.375	11.1875	0.1875	0.75	667	-15.9375	29.4375	24
